The USB Type C Jack M12 Bulkhead Panel Mount is a versatile and robust connector designed for use in a wide range of applications. Featuring an IP65 waterproof rating, this USB C jack provides excellent protection against dust and water ingress, making it ideal for outdoor or indoor environments where exposure to the elements is a concern.

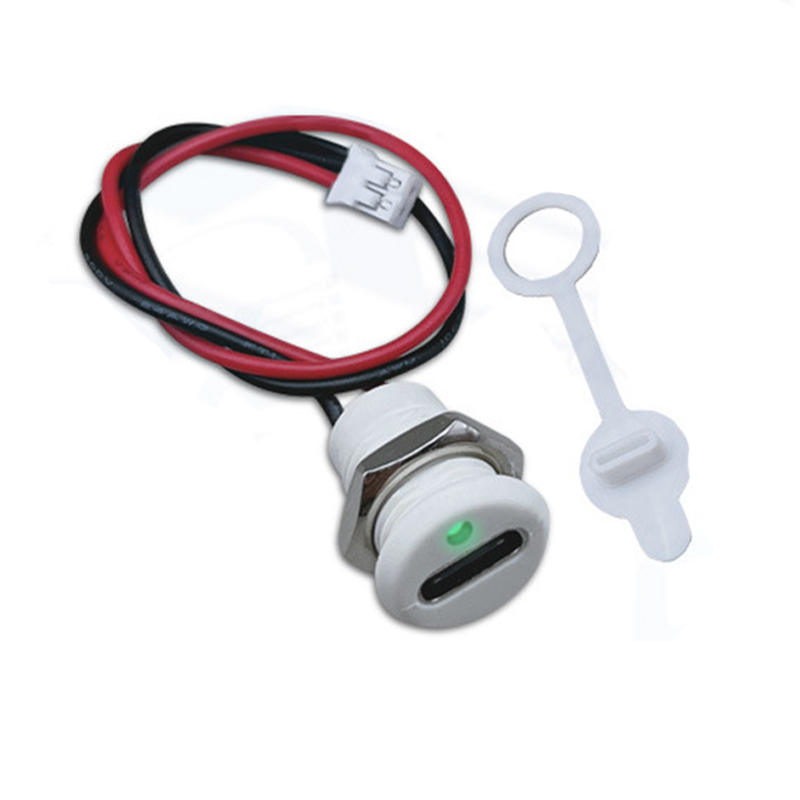

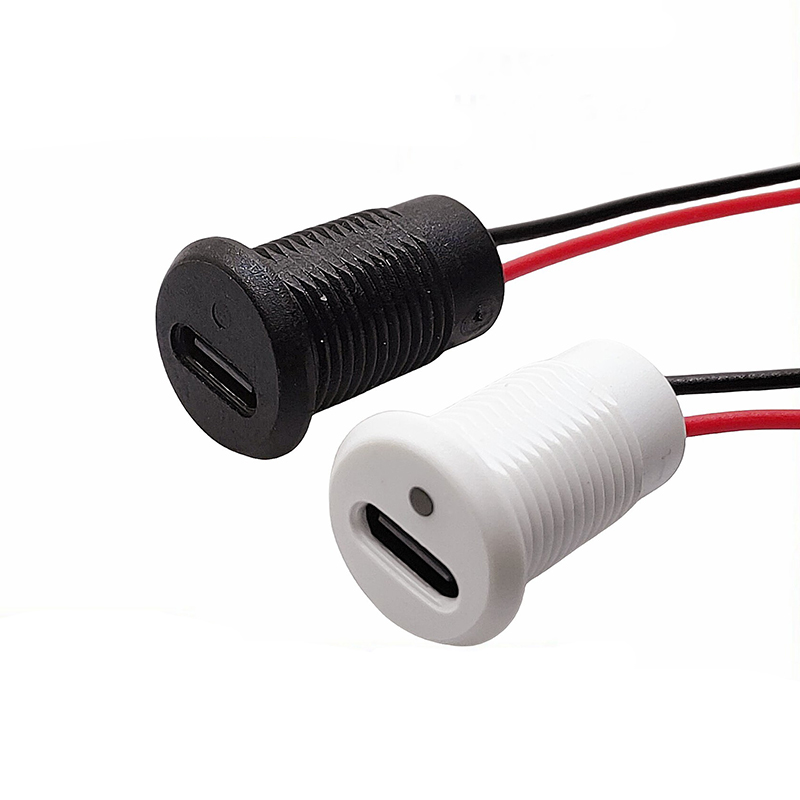

The USB C connector is available in both black and white color options, offering a sleek and modern aesthetic that can complement any device or system. A green LED indicator at the front of the connector provides a clear visual indication of charging status, making it easy to monitor the power connection.

The USB C jack offers a variety of wire dimension and length options to suit different installation requirements. Choose from 22AWG or 24AWG wires, and select a wire length that ranges from 50mm to 400mm. This flexibility ensures that you can find the perfect configuration for your specific needs.

In addition to the standard Vbus and GND connections, the USB C jack also offers three additional configuration options. Option 2 includes D+ and D- signals for data transfer, while Option 3 adds SUB1 and SUB2 signals for additional functionality. Option 4 includes CC1 and CC2 signals, which are required for Power Delivery (PD) and other advanced USB-C features.

Overall, the USB Type C Jack M12 Bulkhead Panel Mount is a reliable and versatile connector that offers excellent protection against water and dust ingress, while providing a range of configuration options to suit different applications.
