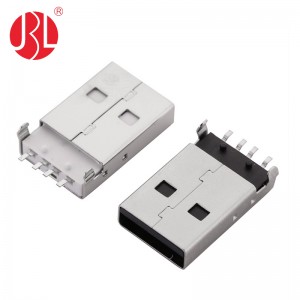

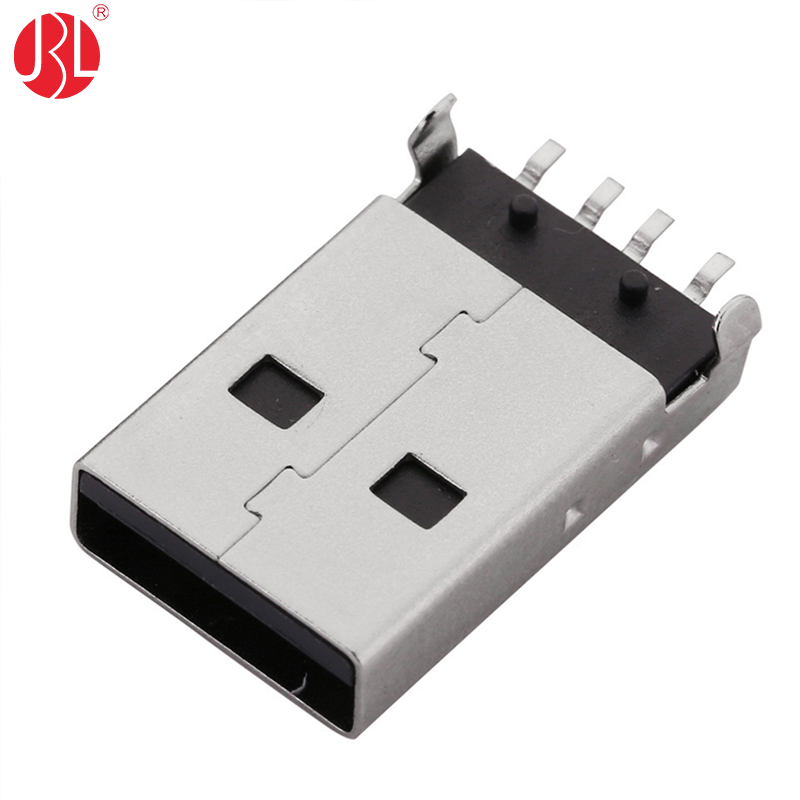

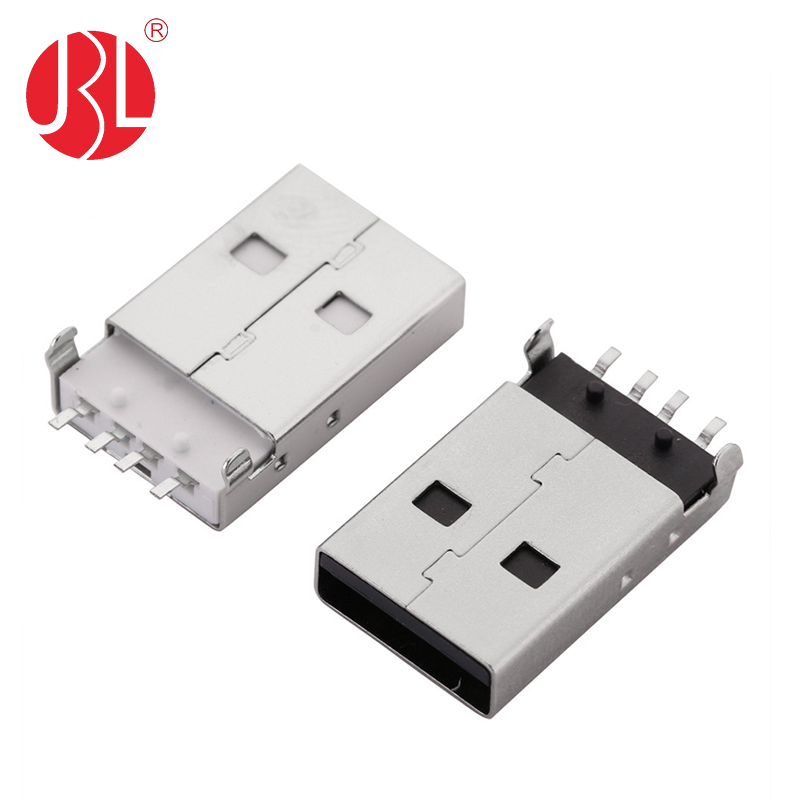

This high-quality USB 2.0 Type A Male Connector features a 4-position design with combined surface mount (SMT) and through-hole mounting for superior PCB retention. The right-angle configuration provides optimal space-saving benefits for compact device designs while maintaining full USB 2.0 compliance with 480Mbps data transfer speeds.

Engineered for durability, the connector’s robust housing withstands repeated mating cycles, and its dual mounting system ensures mechanical stability in demanding applications. The design includes:

• Right-angle orientation for efficient PCB space utilization
• Combination SMT/through-hole termination for enhanced mounting reliability
• Standard Type A male interface for universal compatibility
• 500mA power delivery capability per USB 2.0 specifications

This connector serves as a direct replacement for multiple industry-standard parts including Molex 0480371000/0480372000, Samtec USB-AM-S-S-B-SM1, and CNC Tech 1002-016-01101. Its versatile design makes it suitable for various applications including:

• Industrial control systems
• Consumer electronics
• Medical devices
• Embedded computing
• Kiosk and POS systems

The connector’s hybrid mounting style provides the benefits of surface-mount technology while maintaining the mechanical strength of through-hole connections. Gold-plated contacts ensure reliable signal integrity, and the molded housing offers excellent resistance to mechanical stress. This cost-effective solution delivers reliable USB connectivity for OEMs requiring a space-optimized, high-performance interface in their product designs.
