Product Descriptions :

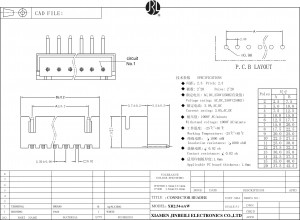

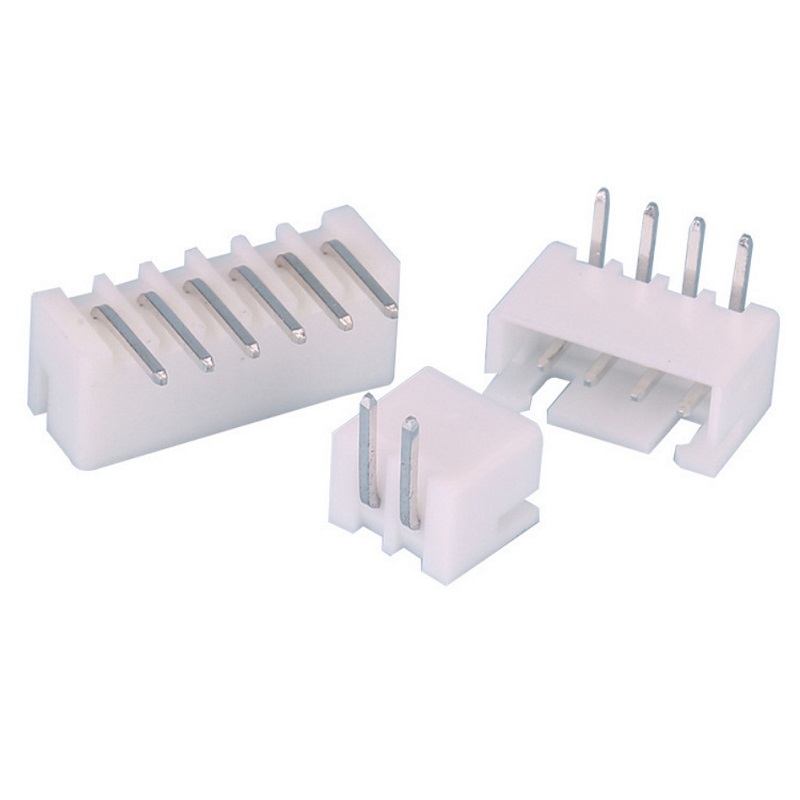

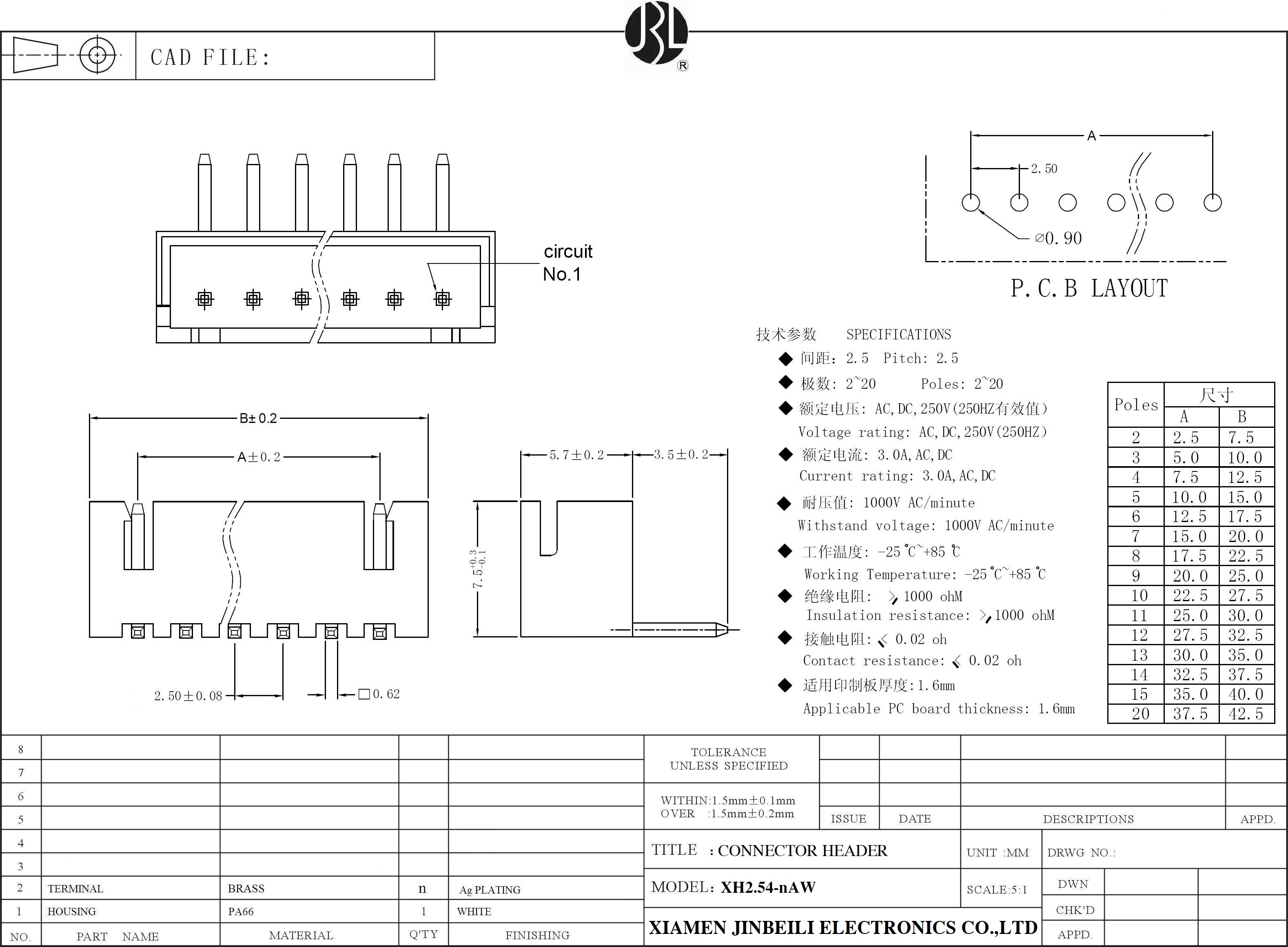

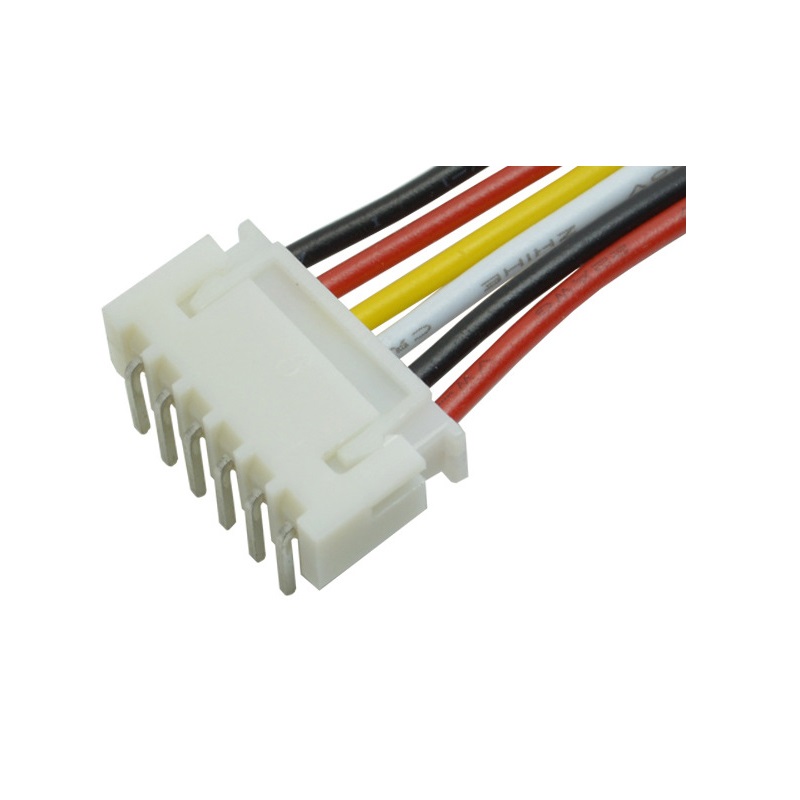

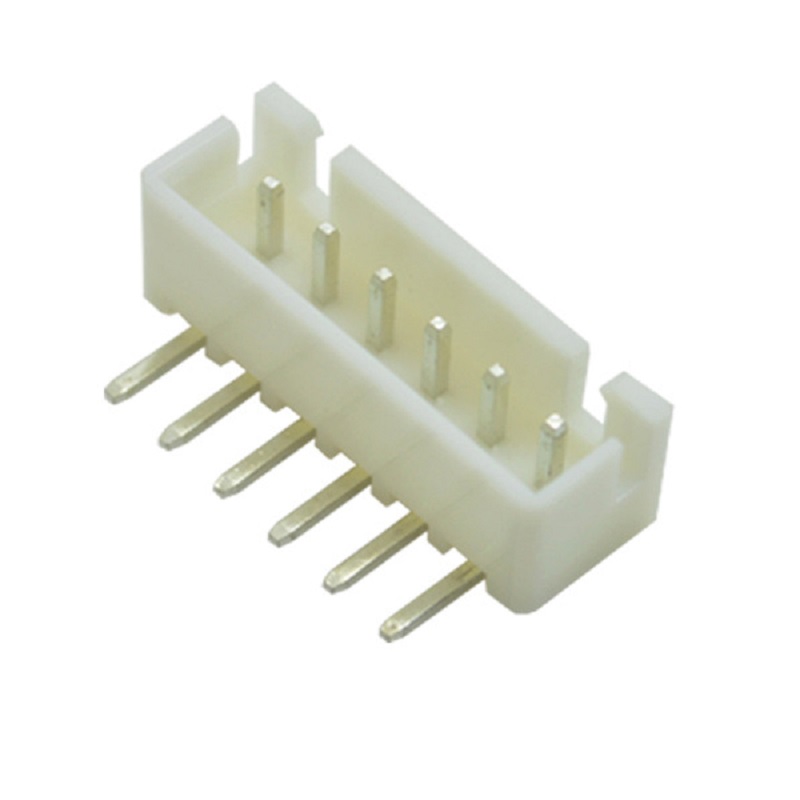

Product name : Connector Header Through Hole, Right Angle 5 position 0.100″ (2.54mm)
XH CONNECTOR 2.54 MM PITCH DISCONNECTABLE CRIMP STYLE CONNECTORS
JST XH 2.54 SERIES PROTECT HEADER 2.54 PITCH RIGHT ANGLE PCB MOUNT W-POST
2.54 mm pitch disconnectable crimp style connectors

Model: XH2.54-nAW

Features : This is a 2.54 mm pitch,crimp style,dual-row,wire to board connector. it’s designed to meet the demand for high-density and low-profile connection.
*Compact
*Reliable contacts
*Fully shrouded header

Applicable wire : AWG #3 to #22

Position Numbers : 02 pin to 20 pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 3 A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 1000 V for 1 min

Working Temp : -25°C~+85°C

Package : bulk

Datasheets :
